Disc Shapes of Bellows Sealed Globe Valve That You Can Choose

Bellows sealed globe valvesare widely used in industries where zero external leakage, reliable shut-off, and long service life are critical. Unlike conventional globe valves, Bellows Sealed Globe Valves use a welded metal bellows to isolate the process medium from the atmosphere, eliminating the possibility of stem leakage. They are commonly installed in steam systems, thermal oil plants, chemical processing, power generation, petrochemical facilities, pharmaceutical production, and other demanding industrial applications.

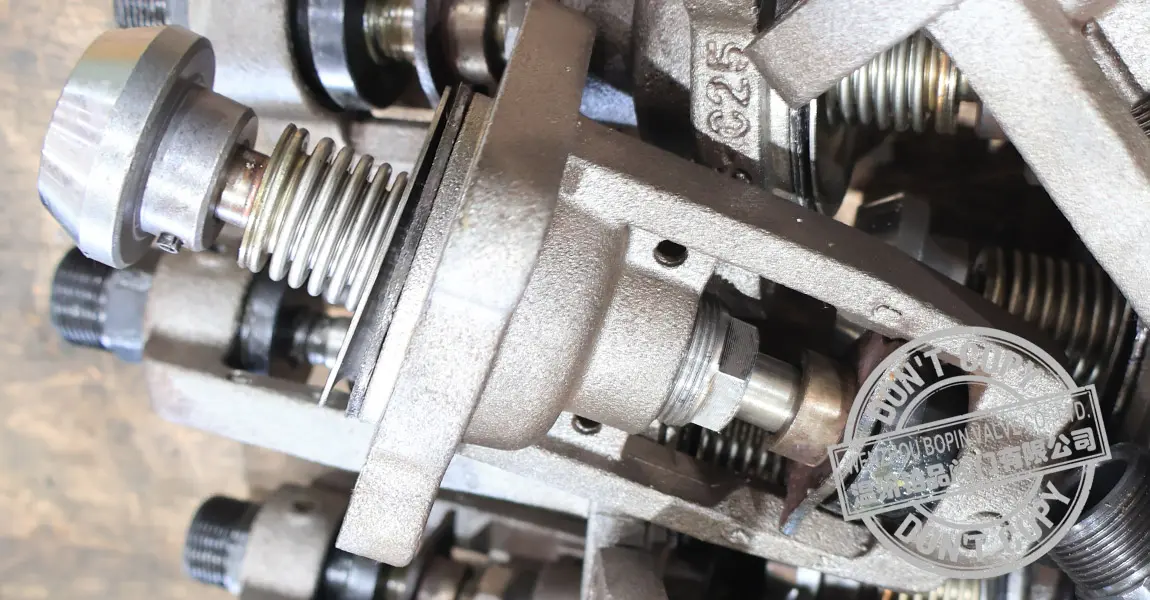

While the bellows assembly protects the environment and ensures safe operation, the disc is the component that actually controls the flow of the medium and seals against the valve seat. Different disc shapes provide different flow characteristics, sealing performance, pressure resistance, and throttling capabilities. Selecting the appropriate disc design is therefore one of the most important decisions when specifying a bellows sealed globe valve.

At BOPIN Valve, we manufacture bellows sealed globe valves with a variety of disc configurations to satisfy the requirements of different industries and operating conditions.

Why Disc Shape Is Important

The disc is the moving element that contacts the valve seat every time the valve opens or closes. Its geometry directly affects:

• Shut-off performance
• Flow regulation accuracy
• Pressure drop
• Operating torque
• Seat wear
• Resistance to erosion
• Valve service life
• Maintenance frequency

A properly selected disc shape improves system efficiency, extends valve life, and reduces maintenance costs.

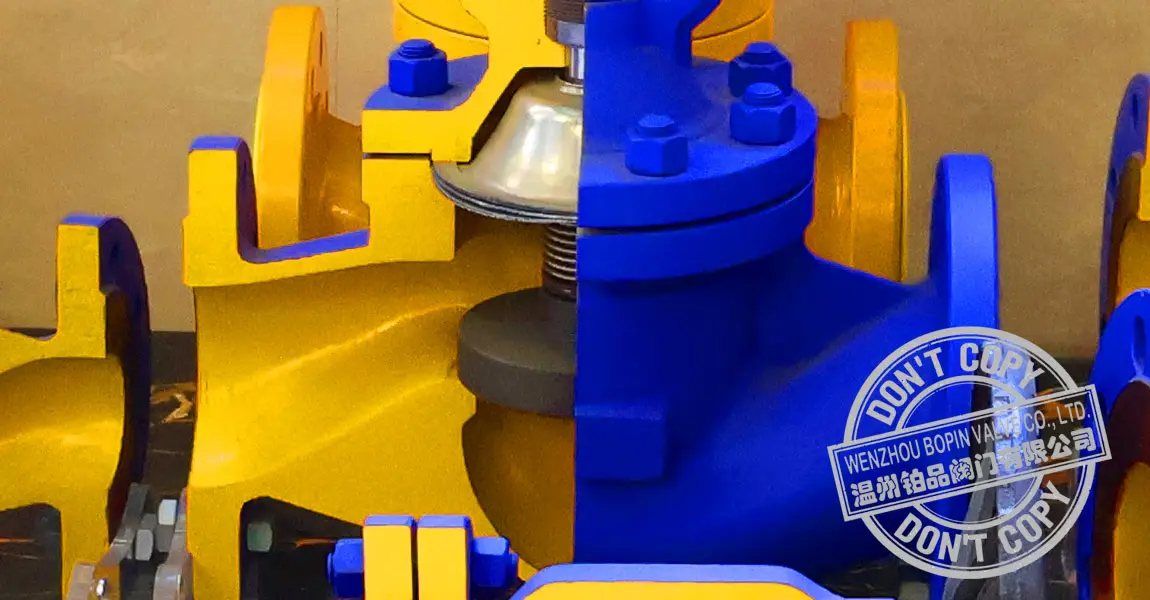

1. Plug Disc (Conical Disc)

The plug disc is the most common design used in bellows sealed globe valves. It features a tapered seating surface that gradually contacts the valve seat during closing.

This gradual engagement minimizes impact between the sealing surfaces and provides excellent control characteristics.

Advantages

• Excellent throttling performance
• Reliable tight shut-off
• Smooth opening and closing
• Reduced seat wear
• Long operating life
• Suitable for frequent operation

Because the opening area changes progressively as the valve stem moves, the plug disc provides stable and predictable flow control.

Applications

• Steam systems
• Condensate pipelines
• Thermal oil
• Industrial gases
• Power stations
• General process industries

For most industrial services, the plug disc is considered the standard choice.

2. Flat Disc

The flat disc has a broad sealing face that sits directly against the valve seat.

Unlike the plug disc, the flat disc is designed primarily for isolation rather than throttling.

Advantages

• Excellent shut-off capability
• Large sealing contact area
• High sealing reliability
• Simple structure
• Economical manufacturing
• Easy maintenance

Because of the larger seating surface, flat discs provide dependable sealing even after years of operation.

Applications

• Water systems
• Steam isolation
• Utility services
• Cooling water
• Industrial piping
• Oil transfer lines

Where the valve is normally either fully open or fully closed, the flat disc is an excellent option.

3. Parabolic Disc

The parabolic disc is designed specifically for accurate flow regulation.

Instead of opening abruptly, its curved profile gradually increases the flow area as the valve stem lifts.

This produces much smoother flow characteristics than conventional disc designs.

Advantages

• High control accuracy
• Stable flow coefficient
• Lower turbulence
• Reduced vibration
• Improved control sensitivity
• Better performance at partial openings

The parabolic disc is commonly selected whenever the globe valve performs continuous throttling duties.

Applications

• Chemical plants
• Process control
• Steam pressure control
• Heat exchangers
• Temperature regulation
• Industrial automation

Its linear flow characteristics make it ideal for process industries where precise control is required.

4. Needle Disc

The needle disc has a long tapered tip that allows extremely small changes in opening area.

This design enables highly accurate regulation of low flow rates.

Advantages

• Extremely precise throttling
• Excellent low-flow control
• Smooth adjustment
• Stable process control
• Minimal flow fluctuation

Needle discs are generally installed in smaller valve sizes because they are intended for precision regulation rather than large flow capacities.

Applications

• Instrumentation
• Sampling systems
• Laboratory equipment
• Chemical dosing
• High-purity process lines
• Calibration equipment

Whenever accurate metering is essential, the needle disc is the preferred choice.

5. Soft-Seated Disc

A soft-seated disc combines a metal body with a resilient sealing insert such as PTFE, reinforced PTFE, PEEK, or other engineering materials.

Instead of relying only on metal-to-metal sealing, the resilient insert creates bubble-tight shut-off.

Advantages

• Zero visible leakage
• Bubble-tight sealing
• Low operating torque
• Excellent sealing for clean media
• Quiet operation
• Reduced seat damage

Limitations

Soft-seated discs have lower pressure and temperature limits than fully metal-seated designs.

They should not be used for high-temperature steam or abrasive fluids.

Applications

• Clean water
• Air
• Nitrogen
• Oxygen
• Pharmaceutical production
• Food processing
• Clean chemicals

For low-temperature services requiring absolute sealing performance, soft-seated discs are an excellent solution.

6. Composition Disc

A composition disc combines a metal carrier with a replaceable soft sealing ring.

This design offers the strength of metal together with the sealing performance of resilient materials.

Advantages

• Easy replacement of sealing ring
• Improved sealing performance
• Reduced maintenance cost
• Longer service life
• Good resistance to minor seat damage

Applications

• Utility services
• Water treatment
• HVAC systems
• Low-pressure industrial pipelines

Metal-Seated vs. Soft-Seated Disc

The selection between metal and soft seating depends entirely on operating conditions.

Metal-Seated Disc

Suitable for:

• High temperature
• High pressure
• Steam
• Thermal oil
• Abrasive media
• Corrosive services

Benefits include:

• Long service life
• Excellent wear resistance
• High pressure capability
• Fire-safe performance

Soft-Seated Disc

Suitable for:

• Low temperature
• Clean fluids
• Air
• Water
• Gas
• Pharmaceutical processes

Benefits include:

• Bubble-tight shut-off
• Low operating torque
• Excellent sealing
• Quiet operation

Factors to Consider When Selecting a Disc Shape

Choosing the proper disc configuration requires evaluation of several operating parameters.

Process Medium

Steam, water, oil, chemicals, gas, and slurry each require different sealing characteristics.

Working Pressure

High-pressure systems generally require robust metal-seated plug or flat discs.

Operating Temperature

Steam systems operating above 400°C require heat-resistant alloy materials with metal seats.

Flow Control Requirements

If the valve performs throttling, a plug or parabolic disc is recommended.

For simple isolation, a flat disc provides excellent performance.

Frequency of Operation

Frequently operated valves benefit from disc designs that reduce seat wear and operating torque.

Maintenance Requirements

Applications where maintenance access is limited should use durable disc materials with long service life.

BOPIN Valve Custom Disc Solutions

BOPIN Valve manufactures bellows sealed globe valves in accordance with international standards including DIN, EN, API, and BS. We provide a wide range of disc configurations to match different process requirements.

Available options include:

• Plug disc
• Flat disc
• Parabolic disc
• Needle disc
• Soft-seated disc
• Composition disc

Our engineering team can also customize:

• Disc materials
• Hard-facing alloys
• Stellite seat overlays
• PTFE inserts
• Special alloy coatings
• Surface treatments

Every valve undergoes strict dimensional inspection, pressure testing, shell testing, seat leakage testing, and operational testing before shipment to ensure dependable performance under demanding industrial conditions.
