Continues to Supply API 600 Gate Valves with Genuine Replaceable Seat Design
In industrial valve applications, seat design has a direct influence on sealing performance, service life, maintenance cost, and overall equipment reliability. For this reason, BOPIN remains firmly committed to supplying API 600 gate valves with genuine replaceable seats, providing customers with a practical and maintainable solution for demanding oil, gas, petrochemical, power generation, and industrial pipeline applications.
Unlike valves in which the seat is permanently integrated into the body, a genuine replaceable seat design allows the valve seat to be removed and replaced when necessary. This design provides an important maintenance advantage, especially when valves operate for long periods under high pressure, high temperature, or abrasive and corrosive service conditions.
BOPIN's API 600 gate valves are available in different sizes, pressure classes, body materials, trim combinations, and end connections according to project requirements. The replaceable seat configuration can be manufactured and inspected according to applicable API and customer specifications.
What Is a Genuine Replaceable Seat?
A genuine replaceable seat is a separately manufactured valve seat ring installed into the valve body rather than being permanently formed as an integral part of the body.
For an API 600 gate valve, the seat ring provides the sealing surface against the gate. During valve operation, the gate moves vertically between the open and closed positions. When fully closed, the gate contacts the upstream and downstream seats to establish the required shut-off.
With a replaceable seat design, the seat ring can be removed from the valve body during maintenance. If the sealing surface becomes worn, damaged, or otherwise unsuitable for continued service, the seat can potentially be replaced without replacing the complete valve body.
This is particularly valuable for large, expensive, or difficult-to-access valves.
Key Features of the Replaceable Seat Design
1.Independent Seat Components
The valve seat is manufactured as an independent component. This allows the seat material, hardness, dimensions, and surface finish to be controlled separately from the valve body.
Different trim combinations can be selected according to the medium and operating conditions. This provides greater flexibility for engineering projects.
2.Maintainable Sealing Surface
The seat is one of the most important sealing components in a gate valve. During long-term operation, repeated opening and closing, pressure fluctuations, contamination, or unsuitable operating conditions may eventually affect the sealing surface.
A replaceable seat design provides a practical route for restoring the sealing function without automatically discarding the entire pressure-containing body.
3.Robust Metal-to-Metal Sealing
API 600 gate valves are commonly designed with metal-seated construction. The gate and seat sealing surfaces are manufactured and finished to achieve the required contact and leakage performance.
Depending on the trim specification, hardfacing materials such as Stellite or other suitable alloys can be applied to improve resistance to wear, erosion, and galling.
4.Suitable for Different Materials
The replaceable seat concept allows manufacturers to select suitable seat materials for different applications. Carbon steel, stainless steel, alloy steel, and special trim combinations can be considered according to pressure, temperature, and medium requirements.
Advantages of Genuine Replaceable Seats
Reduced Maintenance Costs
One of the most important advantages is the potential reduction in maintenance cost. When a valve has a replaceable seat and the seat sealing surface is damaged, maintenance personnel can replace the seat rather than automatically replacing the complete valve. For large-diameter valves, the economic benefit can be significant because the valve body itself can represent a substantial portion of the equipment cost.
Extended Valve Service Life
The body of an API 600 gate valve is designed to withstand demanding pressure-containing service. If the valve body remains structurally sound while the seat has reached the end of its service life, replacing the seat can extend the useful life of the valve. This approach supports long-term asset management and can reduce unnecessary equipment replacement.
Easier Overhaul
During a major plant shutdown, valves may be inspected and refurbished. A removable seat provides maintenance personnel with greater access to the sealing components. The seat, gate, stem, packing, and other internal components can be inspected according to the maintenance procedure. If the seat does not meet the required condition, a replacement can be installed.
Flexible Trim Selection
Replaceable seats can provide greater flexibility when different service conditions are encountered. For example, a valve used for clean process fluid may require a different trim combination from a valve operating with erosive or corrosive media. The appropriate materials and surface treatments can be specified based on the application.
Improved Long-Term Value
The initial purchase price is only one part of the total cost of ownership of an industrial valve. Maintenance, downtime, spare parts, replacement labor, and service life can have a major influence on overall operating costs. A genuine replaceable seat design can contribute to better lifecycle economics when the application and maintenance strategy are suitable.
API 600 Gate Valve Construction
A typical API 600 gate valve consists of a valve body, bonnet, gate, stem, seat rings, packing system, handwheel or actuator, and associated internal components.
The body is the primary pressure-containing component. The bonnet provides access to the internal components and can be connected to the body through a bolted or pressure-sealed arrangement depending on the valve design and pressure class.
The gate moves vertically to control the flow. When fully open, the gate is lifted out of the main flow passage. When fully closed, it engages with the seats to isolate the pipeline.
The stem transfers movement from the handwheel or actuator to the gate. The packing system helps prevent external leakage around the stem.

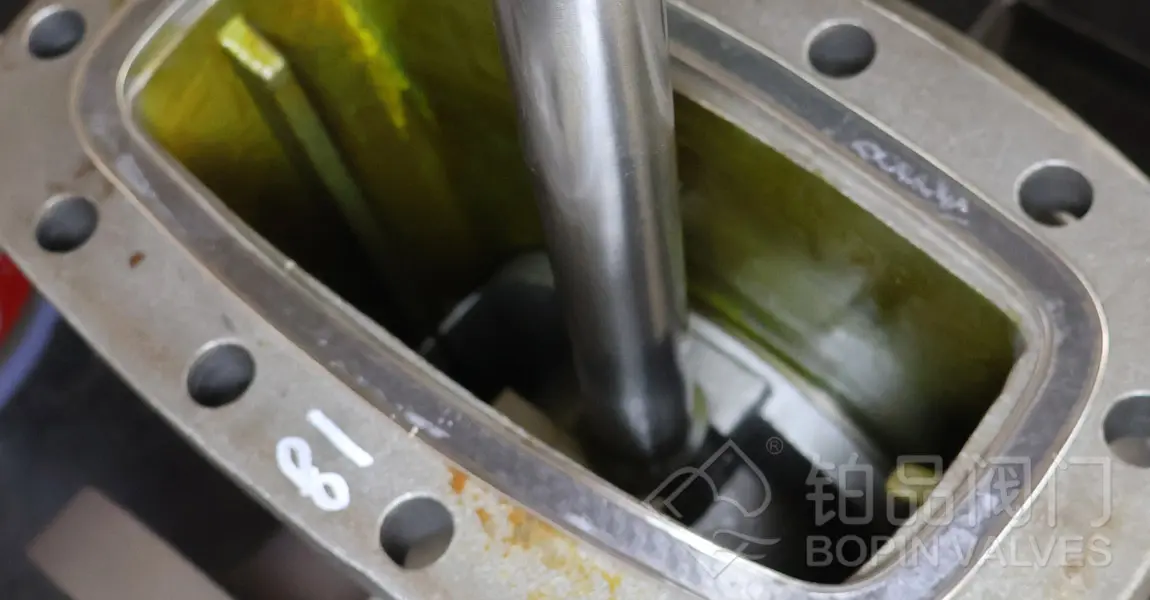

The replaceable seat rings are positioned inside the body and provide the primary metal sealing interfaces with the gate.
Applications of API 600 Replaceable Seat Gate Valves
API 600 gate valves with replaceable seats are widely applicable to industrial systems requiring reliable isolation.
Typical applications include:
- Oil and gas pipelines
- Refineries
- Petrochemical plants
- Power plants
- Steam systems
- Chemical processing
- Natural gas facilities
- Industrial water systems
- Tank farms
- Process pipelines
The appropriate valve material and trim must always be selected according to the actual operating medium, pressure, temperature, corrosion conditions, and applicable project specifications.
Manufacturing and Quality Control
Producing a reliable replaceable-seat API 600 gate valve requires accurate machining and strict quality control.

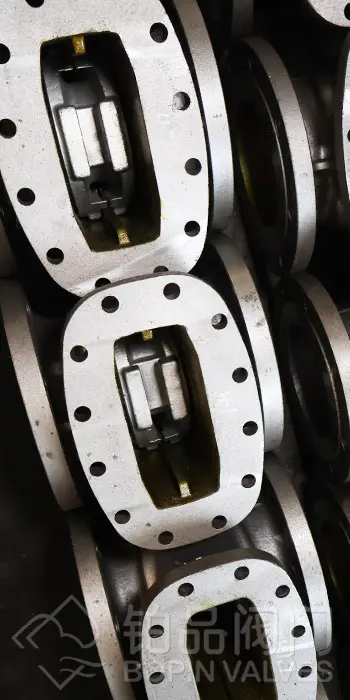

The valve body must provide precise seat installation dimensions. The seat ring must be manufactured according to specified tolerances so that it fits correctly within the body and maintains the intended sealing geometry.
Critical sealing surfaces require controlled machining and finishing. Depending on the design, hardfacing may be applied to the gate and seat sealing surfaces.
After assembly, the valve should undergo appropriate pressure and functional testing. Shell and seat tests can be conducted according to applicable standards such as API 598 and project requirements.
Dimensional inspection, material verification, visual inspection, pressure testing, marking inspection, and functional checks are also important parts of quality assurance.
Replaceable Seat vs. Integrated Seat
The difference between replaceable and integrated seat designs is particularly important for industrial buyers.
An integrated seat is incorporated directly into the valve body and may be difficult or impossible to replace as a separate component. If the sealing area becomes seriously damaged, repair options may be more limited.
A replaceable seat is a separate component that can be removed and replaced when appropriate. This provides greater maintainability and potentially extends the service life of the valve.
However, replaceability should not be considered the only selection criterion. The complete valve design, seat retention method, materials, pressure rating, trim, manufacturing quality, and applicable standard must all be evaluated.
Why Genuine Replaceable Seats Matter
In today's industrial market, customers increasingly focus on lifecycle cost rather than simply purchasing the lowest-priced valve. A valve that can be properly maintained and refurbished can offer greater long-term value.
A genuine replaceable seat is therefore more than a product feature. It represents a maintenance philosophy centered on serviceability, reliability, and long-term performance.
For critical pipeline systems, the ability to inspect and replace worn sealing components can help operators reduce unexpected downtime and maintain equipment availability.
BOPIN Firmly Committed to Quality API 600 Gate Valves
BOPIN is firmly committed to supplying API 600 gate valves with genuine replaceable seats, helping customers obtain Industrial Valves designed for dependable operation and practical maintenance.
From material selection and body manufacturing to precision machining, seat production, assembly, pressure testing, and final inspection, each manufacturing stage plays an important role in valve quality.
For OEM and project orders, BOPIN can provide customized valve configurations according to customer requirements, including body materials, pressure classes, sizes, end connections, trim materials, seat designs, stem configurations, handwheel operation, coatings, markings, inspection requirements, and documentation.
For customers seeking API 600 gate valves for demanding industrial service, the genuine replaceable seat design offers an important combination of reliability, maintainability, service life, and lifecycle value.
BOPIN will continue to focus on professional valve manufacturing and quality control, firmly supporting customers with API 600 gate valves featuring genuine replaceable seats for a wide range of industrial applications.
We are firmly committed to supplying API 600 gate valves with genuine replaceable seats; we refuse to mislead customers by claiming there are no issues while ultimately delivering products with counterfeit or substandard replaceable seats. We have no desire to bear the consequences of such actions!
