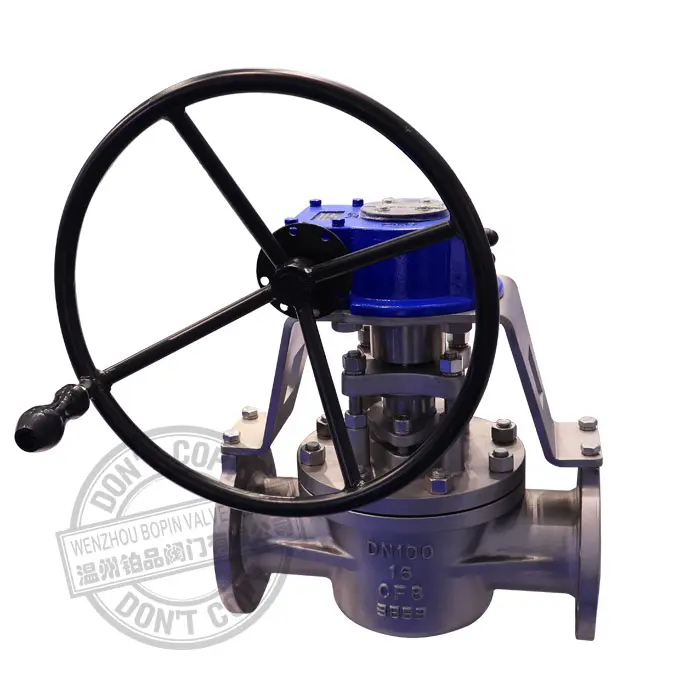

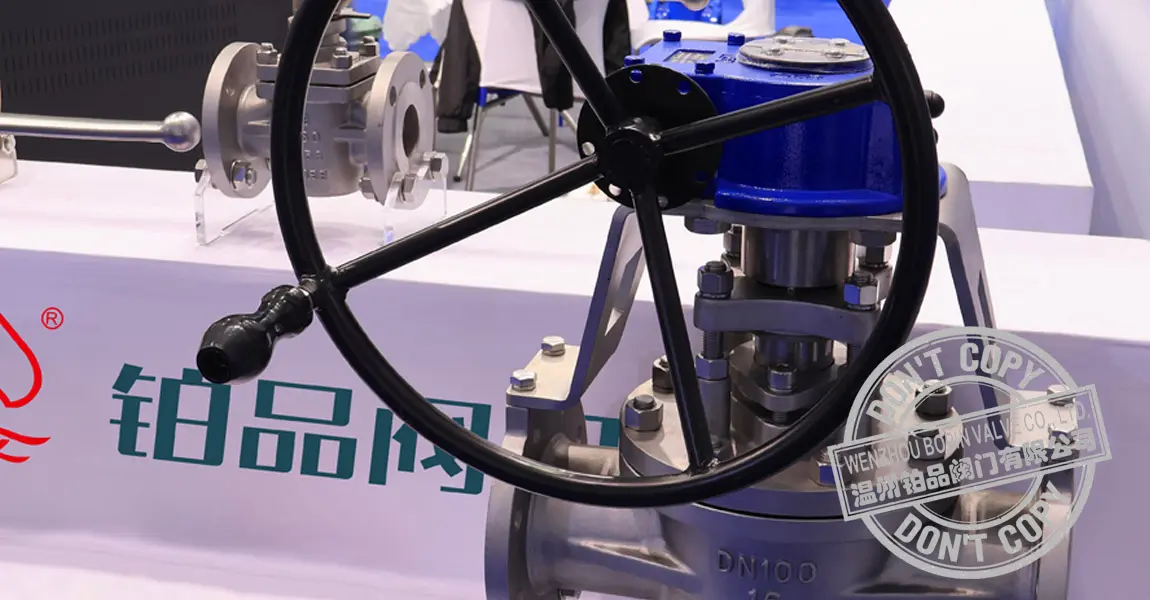

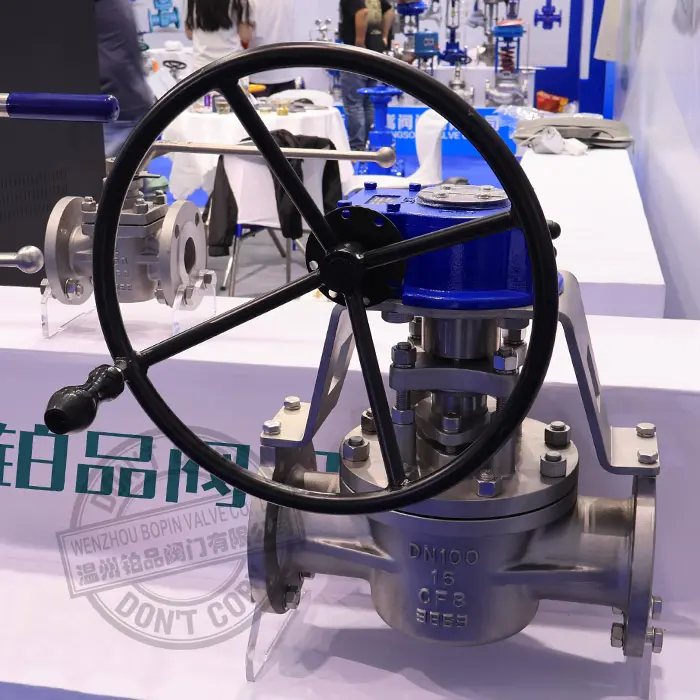

DIN Worm Gear Actuated Flange End Stainless Steel CF8 Sleeve Type Plug Valve

The DIN Worm Gear Actuated Flange End Stainless Steel CF8 Sleeve Type Plug Valve is a highly reliable quarter-turn valve designed for demanding industrial applications requiring tight shutoff, corrosion resistance, and smooth operation. Combining the robust construction of CF8 stainless steel with a non-lubricated sleeve design and worm gear actuator, this valve offers excellent performance in chemical processing, water treatment, petrochemical plants, food processing, and various industrial fluid handling systems.

Engineered in accordance with DIN standards, the valve provides superior sealing performance, extended service life, and reduced maintenance requirements. Its worm gear operation ensures precise control and easy operation, especially for larger valve sizes and higher-pressure applications.

Construction and Design

The DIN sleeve type plug valve consists of a stainless steel body, a tapered or cylindrical plug, a resilient sleeve, and a worm gear actuator. The unique sleeve design isolates the plug from the valve body, minimizing friction and preventing media from contacting internal metallic surfaces directly.

Main Components

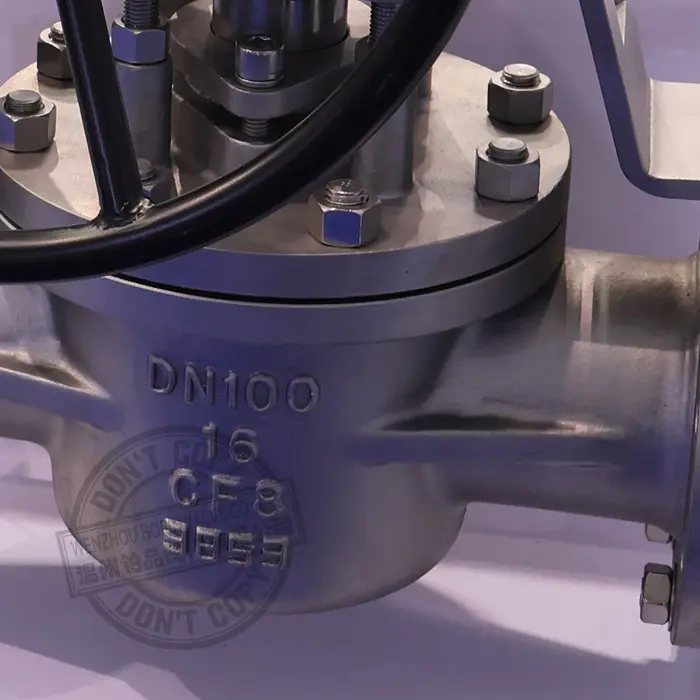

Valve Body

• Material: Stainless Steel CF8 (equivalent to ASTM A351 CF8)
• Excellent corrosion resistance
• Suitable for various aggressive fluids
• High mechanical strength

Plug

• Precision-machined stainless steel plug
• Provides smooth quarter-turn operation
• Designed for bubble-tight shutoff

Sleeve

• PTFE or other high-performance polymer materials
• Eliminates metal-to-metal contact
• Reduces operating torque
• Enhances sealing reliability

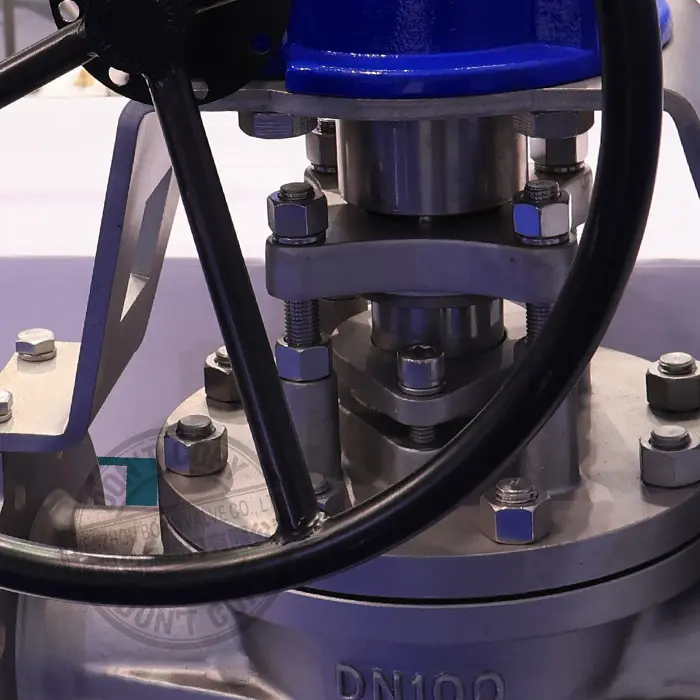

Worm Gear Actuator

• Heavy-duty enclosed gearbox
• Provides mechanical advantage
• Suitable for large-diameter valves
• Enables precise opening and closing

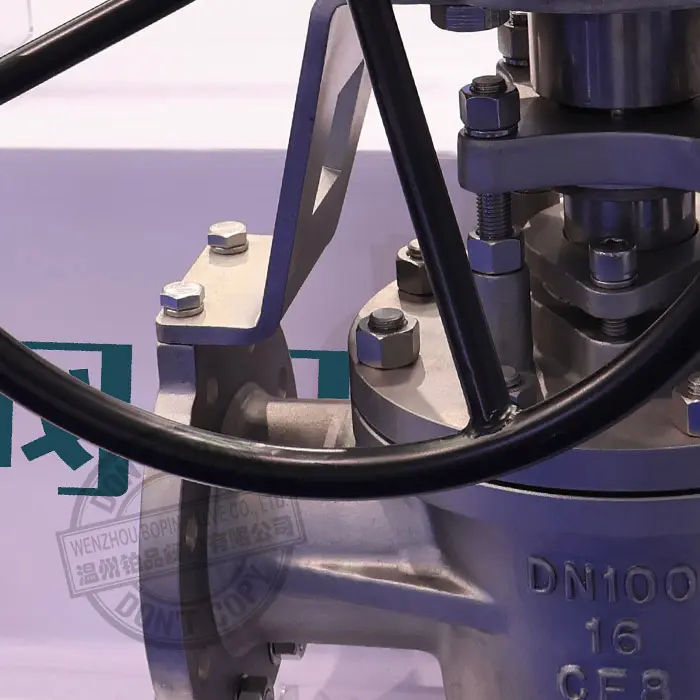

Flanged Ends

• Manufactured according to DIN flange standards
• Easy installation and maintenance
• Secure pipeline connections

Working Principle

The sleeve type plug valve operates through a quarter-turn motion of the plug. The plug contains a flow port that aligns with the pipeline when the valve is open.

When the handwheel of the worm gear actuator is turned, the gearbox rotates the plug through 90 degrees. In the fully open position, the port inside the plug aligns with the flow path, allowing unrestricted fluid passage.

As the handwheel rotates toward the closed position, the plug turns perpendicular to the pipeline, completely blocking the flow. The resilient sleeve provides continuous sealing pressure around the plug, ensuring leak-free operation even under varying pressure and temperature conditions.

The worm gear mechanism significantly reduces the effort required to operate the valve, making it ideal for larger sizes where manual lever operation would be difficult.

Material Advantages of CF8 Stainless Steel

CF8 stainless steel is one of the most commonly used casting grades in industrial valve manufacturing.

Corrosion Resistance

CF8 stainless steel contains approximately:

• 18% Chromium
• 8% Nickel

This composition provides excellent resistance to:

• Water corrosion
• Atmospheric oxidation
• Mild chemicals
• Food-grade media
• Many industrial fluids

Mechanical Strength

CF8 offers:

• High tensile strength
• Excellent impact resistance
• Good ductility
• Long service life

Temperature Performance

CF8 stainless steel can operate effectively across a wide temperature range, making it suitable for:

• Cold water systems
• Steam services
• Chemical processing applications
• Industrial utility systems

Features of Sleeve Type Plug Valve Design

Bubble-Tight Shutoff

The elastomeric or PTFE sleeve creates a continuous seal around the plug, providing excellent shutoff performance and minimizing leakage.

Low Operating Torque

Since the sleeve prevents direct contact between the plug and body, friction is significantly reduced. This results in:

• Easier operation
• Lower actuator requirements
• Reduced wear

Maintenance Friendly

The simple construction allows:

• Easy inspection
• Convenient maintenance
• Quick replacement of sleeves when necessary

Non-Lubricated Design

Unlike traditional lubricated plug valves, sleeve type plug valves do not require sealant injection systems, reducing maintenance costs and environmental concerns.

Long Service Life

The sleeve absorbs wear and protects internal components, extending valve lifespan even in demanding applications.

DIN Standards Compliance

DIN sleeve type plug valves are manufactured according to recognized European standards that ensure safety, quality, and interchangeability.

Common applicable standards include:

Design Standards

• DIN EN 12516
• DIN EN 13709
• DIN EN 558

Flange Standards

• DIN EN 1092-1

Pressure Testing

• DIN EN 12266-1

Face-to-Face Dimensions

• DIN EN 558 Series

Compliance with these standards guarantees compatibility with European piping systems and international industrial projects.

Application Areas

The DIN Worm Gear Actuated CF8 Sleeve Type Plug Valve is widely used across numerous industries.

Chemical Processing

The valve handles:

• Acids
• Alkalis
• Solvents
• Chemical solutions

Its corrosion-resistant stainless steel body and PTFE sleeve make it highly suitable for chemical services.

Water Treatment Plants

Applications include:

• Raw water systems
• Filtration systems
• Wastewater treatment
• Distribution pipelines

Petrochemical Industry

The valve performs reliably in:

• Refinery operations
• Process units
• Utility services
• Hydrocarbon handling systems

Food and Beverage Industry

CF8 stainless steel provides hygienic performance for:

• Process water
• Beverage production
• Food ingredient handling
• Cleaning systems

Pharmaceutical Manufacturing

The smooth internal surfaces and corrosion resistance support:

• Purified water systems
• Process fluids
• Cleaning applications

Power Generation

Commonly installed in:

• Cooling water circuits
• Auxiliary systems
• Chemical dosing lines
• Condensate systems

Advantages of Worm Gear Operation

Reduced Manual Effort

The gear reduction mechanism multiplies input force, making valve operation smooth and effortless.

Precise Positioning

Operators can accurately control valve opening and closing, particularly beneficial in larger sizes.

Increased Safety

The self-locking characteristics of worm gears prevent accidental movement caused by flow forces or vibration.

Suitable for Large Valves

Valves above DN150 often require significant torque. Worm gear operation provides an effective solution without the need for powered actuators.

Extended Equipment Life

Controlled movement reduces impact loading on valve components, minimizing wear and extending service life.

Pressure and Temperature Ratings

Depending on design and sleeve material selection, typical operating ranges include:

Pressure Classes

• PN10
• PN16
• PN25
• PN40

Temperature Range

• PTFE Sleeve: -29°C to +180°C
• Special Materials: Higher temperature options available

Actual ratings should always be verified according to manufacturer specifications and application requirements.

Installation Recommendations

For optimal performance:

• Install according to flow direction requirements.
• Ensure proper flange alignment.
• Tighten flange bolts uniformly.
• Avoid excessive piping stress.
• Operate the valve periodically during long idle periods.
• Verify compatibility between process media and sleeve material.

Proper installation contributes significantly to long-term reliability and operational safety.
