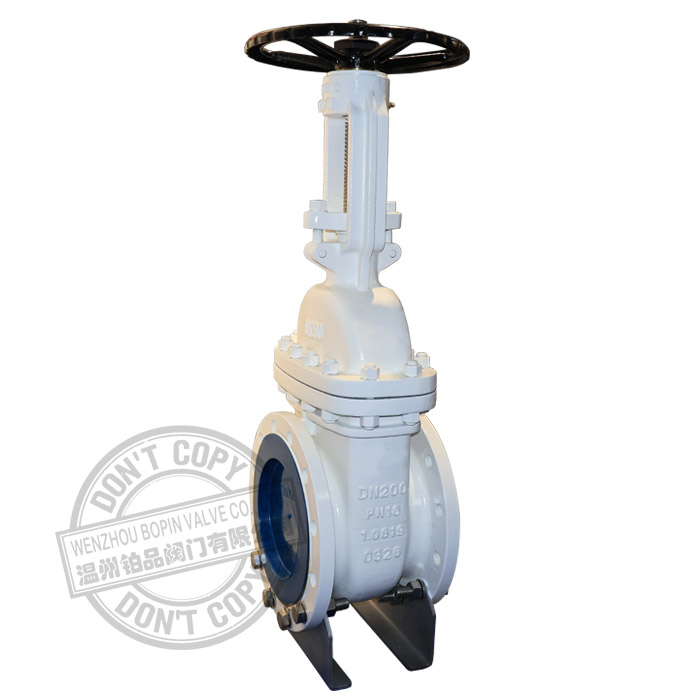

DIN 3352 F4 Cast Steel 1.0619 Flange End Metal Seated Wedged Gate Valve
Main Features of DIN 3352 F4 1.0619 Gate Valve
1. Cast Steel EN 1.0619 Body Construction
The valve body, bonnet, and wedge are manufactured from EN 1.0619 cast steel, a carbon steel grade widely used for industrial valves requiring superior strength and toughness.
Advantages of EN 1.0619 material include:
- High mechanical strength
- Good weldability
- Excellent pressure resistance
- Suitable performance at elevated temperatures
- Reliable service in industrial environments
Compared with cast iron valves, cast steel construction provides improved durability and resistance against mechanical impact, making it suitable for power plants, steam systems, refineries, and chemical processing facilities.
2. Metal Seated Wedge Gate Design
The valve uses a flexible wedge gate structure with metal sealing surfaces. During closing, the wedge moves downward between two inclined seats, creating a tight shut-off.
The metal seated design provides:
- High-temperature capability
- Wear resistance
- Long operational life
- Low maintenance requirements
- Resistance against pressure fluctuations
Typical seat materials include:
- 13Cr stainless steel
- 18Cr stainless steel
- Stellite alloy overlay
These hardened sealing surfaces improve corrosion resistance and reduce erosion damage caused by high-velocity fluids.
3. DIN 3352 F4 Standard Design
The valve is designed according to DIN 3352, with the face-to-face length corresponding to DIN 3202 F4 / EN 558 Series 14 requirements. This allows easy replacement of existing DIN-standard gate valves without pipeline modification.
Typical standard compliance includes:
| Item | Standard |
|---|---|
| Design Standard | DIN 3352 |
| Face-to-Face Dimension | DIN 3202 F4 / EN 558 Series 14 |
| Flange Dimension | EN 1092-1 |
| Testing | EN 12266-1 |
| Body Material | EN 1.0619 Cast Steel |
Technical Specifications
| Parameter | Description |
|---|---|
| Valve Type | Flange End Wedged Gate Valve |
| Design | Metal Seated Rising Stem |
| Body Material | EN 1.0619 Cast Steel |
| Pressure Rating | PN10 / PN16 / PN25 |
| Size Range | DN50–DN1000 |
| End Connection | Flanged |
| Face-to-Face | DIN 3202 F4 |
| Operation | Handwheel, Gear, Electric Actuator |
| Stem Design | Outside Screw and Yoke (OS&Y) |
| Seat Type | Metal Seated |
| Medium | Water, Steam, Oil, Gas |
| Temperature Range | Approx. -20°C to 425°C (depending on design) |

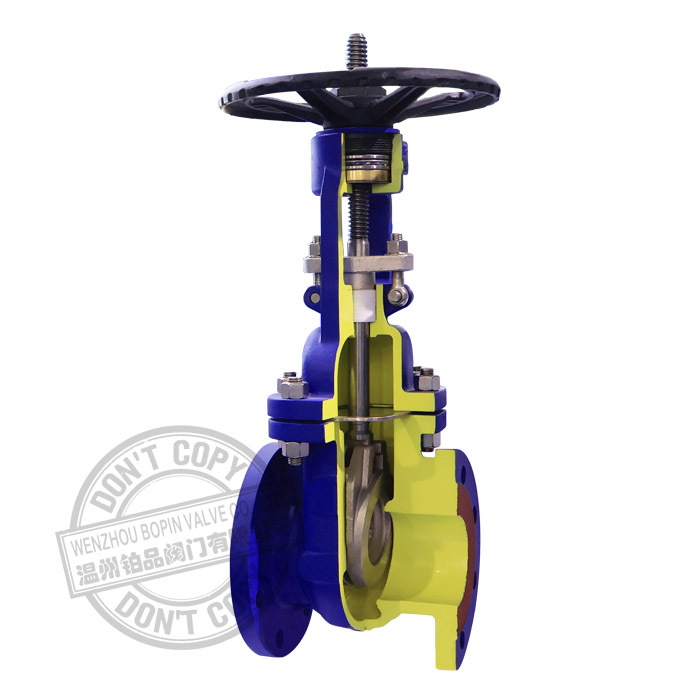

Structural Design Features
Outside Screw and Yoke (OS&Y)
The OS&Y structure keeps the stem outside the valve pressure boundary. When the valve opens, the stem rises visibly, allowing operators to identify valve position easily.
Benefits:
- Clear open/close indication
- Reduced stem corrosion risk
- Easier maintenance
- Suitable for industrial applications

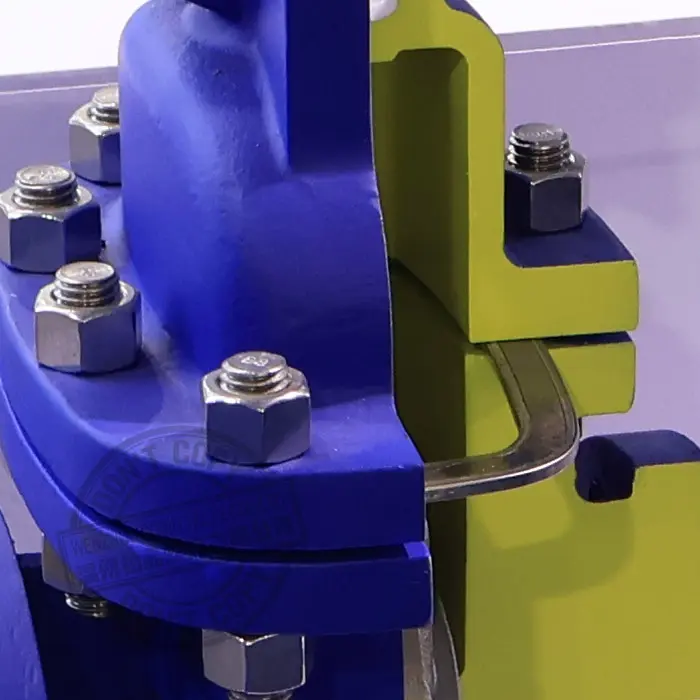

Bolted Bonnet Design
The bolted bonnet connection provides:
- Strong pressure containment
- Easy inspection and maintenance
- Reliable sealing between body and bonnet
A spiral wound gasket or graphite gasket is commonly used to ensure leakage prevention in high-temperature applications.
Full Bore Flow Passage
The wedge gate valve provides a straight-through flow channel when fully opened.
Advantages:
- Low pressure drop
- Minimal turbulence
- Reduced energy loss
- Suitable for pipeline isolation
This design makes it especially effective for large-diameter industrial pipelines.
Applications
The DIN 3352 F4 Cast Steel 1.0619 Metal Seated Gate Valve is widely used in:
Steam Systems
The cast steel body and metal seat design allow reliable operation in steam pipelines, including:
- Power generation plants
- Boiler systems
- Heat distribution networks
Water Treatment
Applications include:
- Water supply pipelines
- Pump stations
- Industrial water circulation systems
Oil and Gas Industry
Used for:
- Crude oil pipelines
- Fuel systems
- Gas transmission facilities
Chemical and Petrochemical Plants
Suitable for:
- Process isolation
- High-temperature fluid systems
- Industrial chemical pipelines
Advantages Compared with Soft Seated Gate Valves
| Feature | Metal Seated Gate Valve | Soft Seated Gate Valve |
|---|---|---|
| Temperature Resistance | Excellent | Limited by elastomer |
| Wear Resistance | High | Medium |
| High Pressure Service | Excellent | Good |
| Sealing Material | Metal alloy | Rubber/EPDM/NBR |
| Maintenance Life | Long | Medium |
Metal seated valves are preferred where operating temperatures are high or where abrasive particles may damage soft materials.
Manufacturing and Quality Control
Professional manufacturers perform strict inspections during production, including:
Material Inspection
- Chemical composition analysis
- Mechanical property testing
- Casting quality inspection
Machining Inspection
- Dimensional inspection
- Flange tolerance checking
- Seat machining verification
Pressure Testing
According to applicable standards:
- Shell strength test
- Seat leakage test
- Functional operation test
These procedures ensure safe operation and long-term reliability.
Why Choose BOPIN DIN 3352 F4 Cast Steel Gate Valve?
BOPIN provides customized DIN-standard industrial valves with:
- EN 1.0619 cast steel materials
- OEM manufacturing capability
- Customized sizes and pressure ratings
- Various actuator options
- Professional inspection documents
- Export packaging solutions
The DIN 3352 F4 Cast Steel Metal Seated Wedged Gate Valve is an ideal solution for customers requiring a robust, reliable, and maintenance-friendly isolation valve for industrial pipeline systems.
