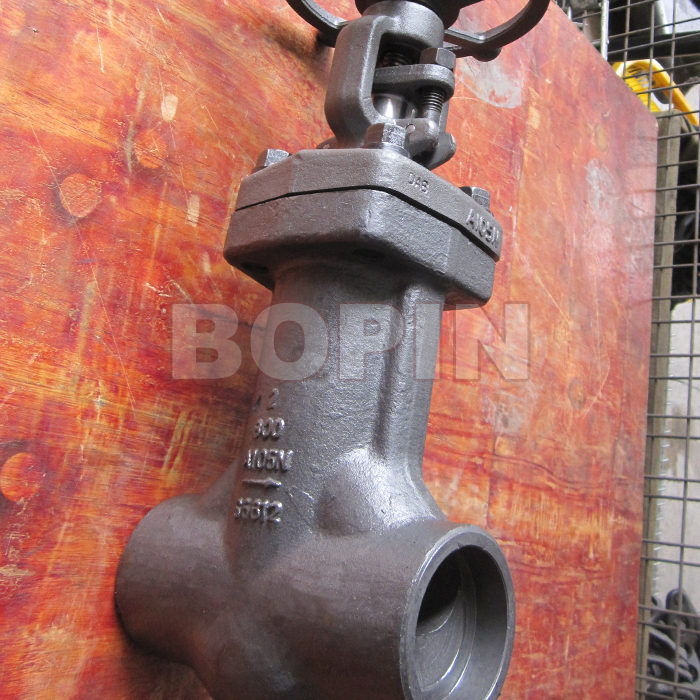

China Forged Steel Bellows Sealed Globe Valve Manufacturer
Construction and Design
The "SW" in the API 602 designation stands for "Socket Weld," a type of connection where the valve body is welded directly to the piping system. This connection style ensures a secure, leak-free installation. Forged steel, specifically A105N, is the material used for the valve body, which is highly regarded for its strength and durability. A105N is a carbon steel alloy, offering good tensile strength and resistance to high temperatures, making it ideal for use in high-pressure applications.
The bellows-sealed design is one of the key features of this valve. The bellows serve as a flexible, corrosion-resistant barrier, preventing any external leakage from the valve stem area. This is especially important in applications where leakage of hazardous fluids or gases can pose a significant safety risk. The bellows prevent contamination of the surrounding environment, and their design also reduces maintenance needs by eliminating the need for traditional packing and gland seals, which can wear out over time.
2. Key Features of the Bellows Sealed Globe Valve
Leakage Prevention: One of the primary advantages of bellows-sealed globe valves is their ability to eliminate stem leakage. The bellows act as a seal, preventing the passage of fluids or gases between the valve stem and body. This is crucial in applications where the media being handled is hazardous, toxic, or corrosive.
Durability and Strength: The valve body is forged from A105N steel, which gives it exceptional strength and resistance to high pressure and temperature. This makes the valve suitable for use in harsh industrial environments. The bellows are typically made from high-quality alloys such as stainless steel, which further enhances the valve’s resistance to corrosion.
Reliable Performance: The design of the API 602 SW End Forged Steel A105N Bellows Sealed Globe Valve ensures reliable operation in high-demand scenarios. It provides precise control over fluid flow, which is essential in processes requiring exacting standards of flow rate and pressure.
Compact and Robust: The globe valve’s design offers a compact and robust structure, ideal for applications where space is limited. The socket-weld end connection ensures a smooth and leak-free integration with the piping system, which is critical for maintaining the integrity of the system.
Corrosion Resistance: With the bellows and valve body materials being resistant to corrosion, these valves can withstand exposure to harsh chemicals and environments, making them highly suitable for chemical processing plants and similar industries.
Temperature and Pressure Resistance: These valves are capable of operating at a wide range of temperatures, from cryogenic conditions to high-temperature environments, thanks to their forged steel construction and bellows design. The bellows material, which is often stainless steel or another corrosion-resistant alloy, ensures the valve maintains its seal even at elevated temperatures.
Maintenance-Free: Due to the bellows seal, these valves require less maintenance compared to traditional globe valves. The elimination of packing and gland seals, which can wear out and require regular replacement, reduces the frequency and cost of maintenance.
3. Applications
API 602 SW End Forged Steel A105N Bellows Sealed Globe Valves are used in various industrial applications, including:
Petrochemical and Refining Industries: In these industries, the valve controls the flow of hydrocarbons, chemicals, and gases at high pressure and temperature. The bellows-sealed design ensures the prevention of hazardous leaks, which is vital for both safety and environmental protection.
Power Generation: These valves are used in power plants for steam and water control. They regulate flow within boilers, condensate lines, and other critical areas of the power generation process.
Water and Wastewater Treatment: The valve is also used in water treatment facilities where tight sealing is required to prevent contamination of clean water supplies.
Cryogenic Applications: Due to their ability to handle low temperatures, bellows-sealed valves are often used in cryogenic systems, such as those involved in LNG (liquefied natural gas) transport and storage.
Oil and Gas: In upstream oil and gas operations, these valves control the flow of crude oil, natural gas, and other fluids under high pressure. The bellows design ensures there is no leakage, even in the most challenging conditions.
4. Advantages of Bellows-Sealed Globe Valves in Critical Systems
The primary advantage of using API 602 SW End Forged Steel A105N Bellows Sealed Globe Valves in critical systems is their ability to provide a long-lasting, maintenance-free sealing solution. The bellows effectively replace traditional packing seals, which are prone to failure over time due to wear and environmental conditions. Additionally, the valve's design minimizes the risk of leaks, making it a vital component in systems where leakage can result in catastrophic failures.
These valves also improve the overall efficiency of industrial systems by providing reliable performance in regulating fluid flow. As a result, they reduce the need for frequent maintenance, leading to lower downtime and repair costs. With their robust construction and corrosion resistance, these valves are well-suited for industries that deal with aggressive media, high pressures, or fluctuating temperatures.
