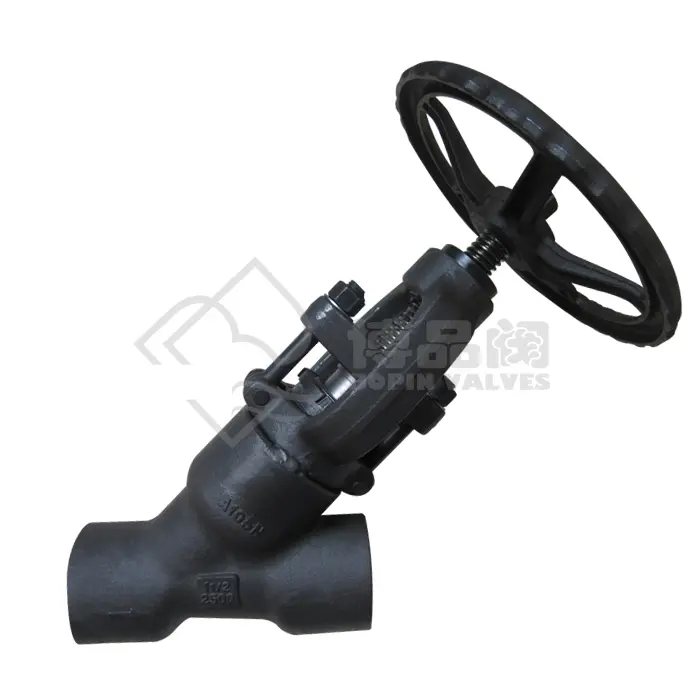

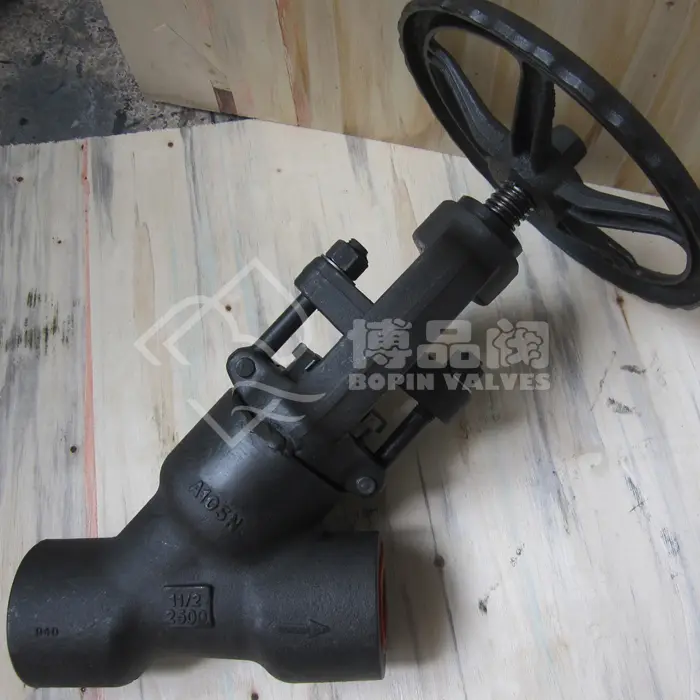

API 602 Forged Steel Y-Shaped Globe Valve
Simple Description
The API 602 Forged Steel Y-Shaped Globe Valve is a highly specialized valve designed to regulate the flow of fluids in piping systems. It is part of the API 602 standard, which defines the requirements for forged steel valves used in various industrial applications, including oil and gas, petrochemical, power generation, and chemical processing industries. The Y-shaped configuration of this valve offers several advantages in specific applications, particularly those where space constraints, high-pressure environments, and the need for precise flow control are critical. Its robust design, forged steel body, and exceptional sealing capabilities make it one of the most reliable and durable valve types available.
Design and Construction
1. Y-Shape Design
The most distinctive feature of the API 602 Y-Shape Globe Valve is its body design, which is shaped like a "Y" to enhance flow characteristics. This unique configuration offers reduced pressure drop and minimizes turbulence, making it highly efficient for controlling fluid flow, particularly in high-pressure and high-temperature applications.
The Y-shape provides a more direct flow path compared to a standard globe valve, which generally has a more convoluted internal path. This design reduces friction and contributes to better overall performance in critical operations.
2. Forged Steel Construction
The valve body and bonnet are made from forged steel, which is known for its strength and resilience. Forged steel valves offer superior resistance to pressure, temperature fluctuations, and corrosion compared to cast steel or other materials. The use of forged steel ensures a long service life and can withstand high-pressure, high-temperature environments. Materials like ASTM A105, A182 F304, F316, and others are commonly used, depending on the specific application and fluid characteristics.
3. Valve Trim
The trim components, such as the valve seat, disc, and stem, are carefully designed for precision and durability. These parts are subject to wear, especially in high-flow conditions, and therefore must be crafted from materials that are resistant to corrosion and abrasion. In many cases, trims are made from alloys such as stainless steel or special alloys suited to specific industrial fluids.
4 .Sealing Mechanism
The sealing mechanism in the Y-shape globe valve is designed to provide tight shutoff in both directions. The seat and disc arrangement ensures a leak-tight seal, even under high pressure. The forged design provides a more reliable seal compared to cast valves, especially in systems where fluid pressures can fluctuate significantly.
Applications
The API 602 Forged Steel Y-Shape Globe Valve is ideal for high-performance, high-pressure, and high-temperature applications where precise control of fluid flow is required. Below are some key industries where these valves are commonly used:
1. Oil and Gas Industry
In the oil and gas sector, API 602 Y-Shape Globe Valves are used to control the flow of crude oil, natural gas, and refined products. Their ability to function under extreme conditions, including high-pressure and high-temperature environments, makes them indispensable in offshore platforms, refineries, and pipeline systems.
2. Power Generation
In power plants, globe valves are essential for controlling steam and cooling water flows in boiler systems and turbine feedwater applications. The Y-shape design provides reduced resistance to flow, making it ideal for maintaining efficient energy production.
3. Petrochemical and Chemical Industries
The petrochemical and chemical industries rely on precise flow control to manage hazardous and corrosive fluids. The forged steel construction of the Y-shape globe valve makes it highly resistant to chemical attack and ensures a long service life in demanding environments.
4. Water Treatment Plants
In water treatment systems, valves are required to withstand varying water pressures and temperatures. The Y-shape globe valve is highly effective in regulating water flow and providing accurate flow control, ensuring the treatment process operates efficiently.
Advantages of API 602 Y-Shape Globe Valve
1. Flow Control
The Y-shape design offers a streamlined flow path that reduces flow resistance and minimizes turbulence. This leads to more efficient flow control and helps prevent unwanted pressure drops, especially in applications where accurate flow regulation is crucial.
2. Durability
Due to its forged steel construction, the valve is exceptionally durable, withstanding the stresses imposed by high-pressure and high-temperature systems. The material choice also provides enhanced resistance to corrosion, erosion, and wear, extending the service life of the valve.
3. High-Pressure Capability
API 602 Y-shape globe valves are specifically designed to handle high-pressure environments. They can be used in systems where pressure surges and extreme conditions are a concern, providing reliable performance even under challenging circumstances.
4. Compact Design
The Y-shaped body configuration results in a more compact valve compared to traditional globe valves, making it ideal for systems with space constraints. This makes it a popular choice in applications where minimizing equipment footprint is important.
5. Maintenance and Repairs
Forged steel valves, particularly those built under the API 602 standard, are easier to maintain and repair compared to cast alternatives. The simple design and fewer moving parts reduce the chances of failure and make it easier to replace or repair components, extending the valve’s overall lifespan.
Performance Specifications
1 .Pressure and Temperature Ratings
API 602 Y-shape globe valves are typically rated for high-pressure systems, often with a pressure class ranging from 150 to 2500. Temperature ratings can range from sub-zero temperatures to over 1000°F (538°C), depending on the material selection.
2. Flow Coefficients (Cv)
The flow coefficient (Cv) of a valve is a key performance indicator that shows the valve's ability to pass fluid. The Cv value is generally higher in Y-shape globe valves due to their more streamlined flow path, which reduces turbulence and pressure loss.
3.Leak Tightness
API 602 valves are designed for tight shutoff, ensuring minimal leakage. This is especially important in applications dealing with hazardous or expensive fluids, where even small leaks can result in significant losses or safety hazards.
Standards and Compliance
The API 602 standard sets the global benchmark for forged steel valves, ensuring that each Y-shape globe valve meets specific manufacturing, material, and testing criteria. Valves conforming to this standard are subject to rigorous testing, including pressure tests, seat leakage tests, and other performance evaluations.
In addition to API 602, these valves may also comply with other industry standards, such as ANSI/ASME, ASTM, and NACE, depending on the application’s requirements. These certifications ensure that the valves are fit for purpose and safe to use in critical systems.
Installation and Operation
1 .Installation
API 602 Y-shape globe valves can be installed in both horizontal and vertical pipelines, though the preferred installation orientation may depend on the specific application. It is essential to ensure that the valve is installed correctly, with attention paid to the direction of flow and the alignment of the valve body and bonnet.
2. Operation
The operation of the Y-shape globe valve typically involves either a manual or automated actuator to open or close the valve. Manual operation is often done using a handwheel, while automated options can include electric, pneumatic, or hydraulic actuators for remote or automated control in industrial environments.
